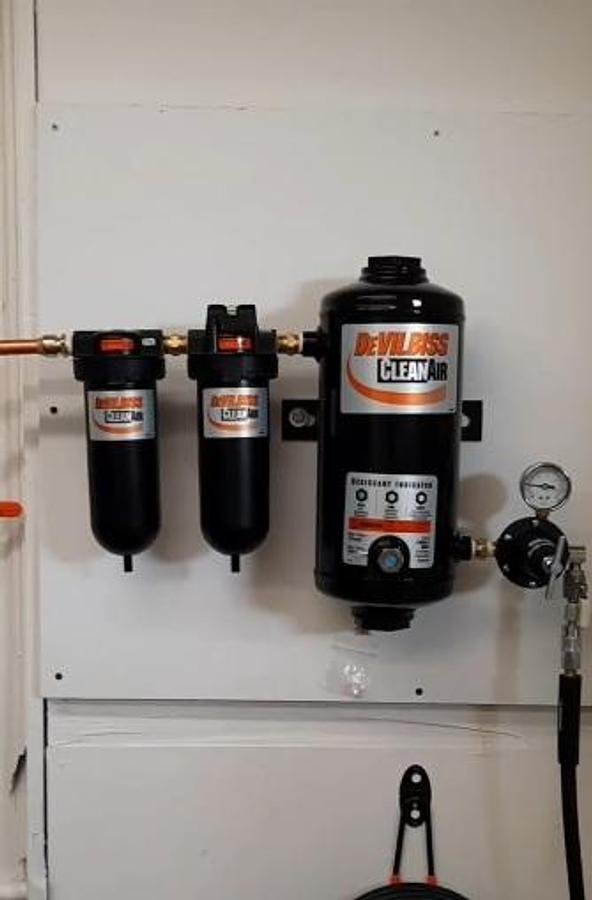

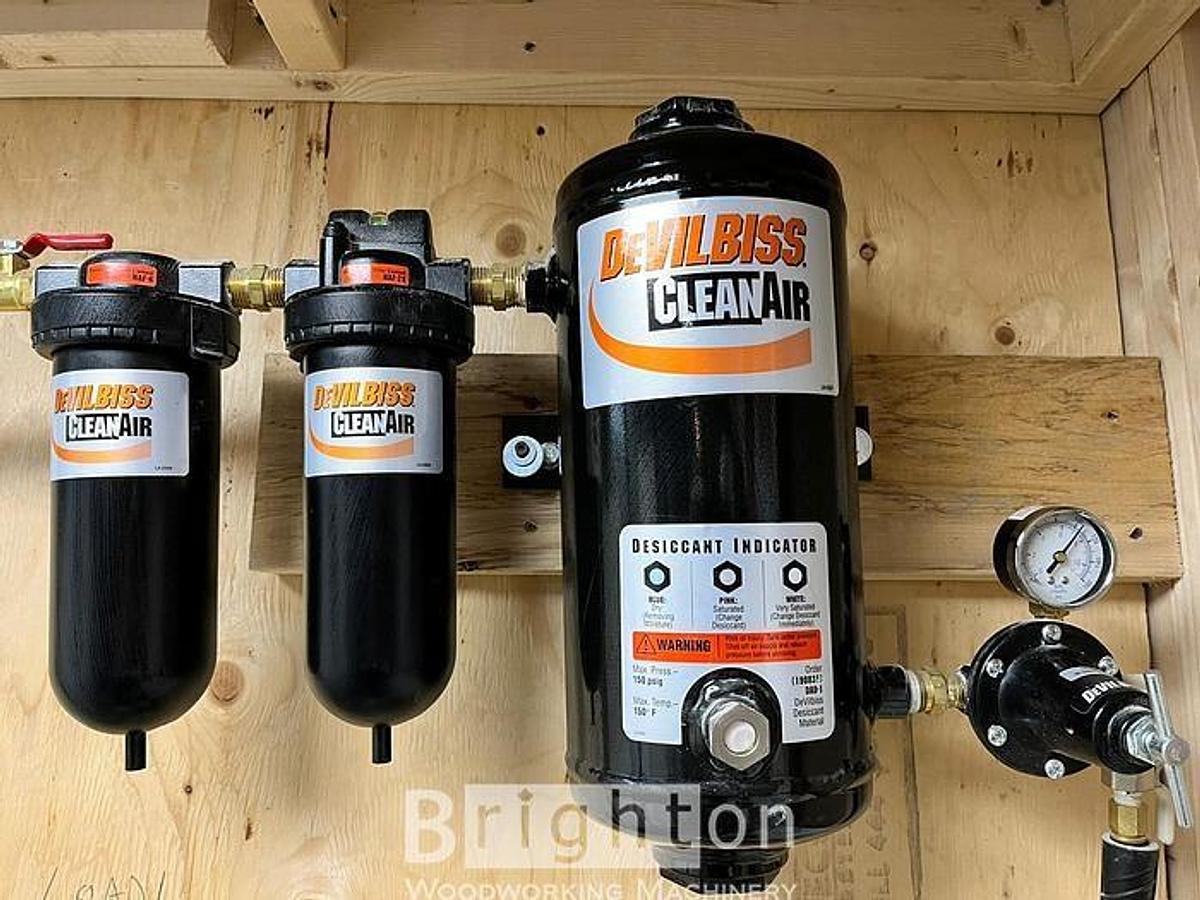

DeVilbiss DAD-500 Desiccant Air Drying System
DeVilbiss DAD-500 Desiccant Air Drying System
$1,511.47 (USD)
or
Call +1 888-647-9929
Description
The DAD-500 is a Desiccant Air Drying System that handles 25 CFM and is designed to be a point of use system and is capable of removing dirt, water, oil and water vapor from compresssed air. It consists of a filter separator, coalescing filter, desiccant dryer, air regulator and main air supply shut off valve.
The Optional DAD-600-1 is a Tune-Up Kit that consists of 1 (one) each of the following:
- DAD-1 (approximately 10# of replacement desiccant beads & humidity indicating paper)
- HAF-6 (replacement Water Separator Filter & O-Ring for the DAD-500)
- HAF-28 (replacement Oil Coalescing Filter & O-Ring for the DAD-500)
Specifications
| Manufacturer | DeVilbiss |
| Model | DAD-500 |
| Condition | New |
| Stock Number | BRF.164.559 |
| Max Flow Rate @ 150 PSIG | 25 cfm |
| Connections | 1/2" NPT (female) |
| Stage 1 | Water Separator - removes large debris, water & oil down to 5 microns |
| Stage 2 | Oil Coalescer - filters fine oil aerosols & microscopic particles down to .01 microns |
| Stage 3 | Desiccant Dryer - uses low-dusting desiccant beads to strip out remaining water vapor to -40F dewpoint |
