5 Stage Powder System w/ Stainless Washer - 3x5

3'w X 5'h GAT Powder System with 5 Stage Stainless Steel washer, designed for 8' long parts

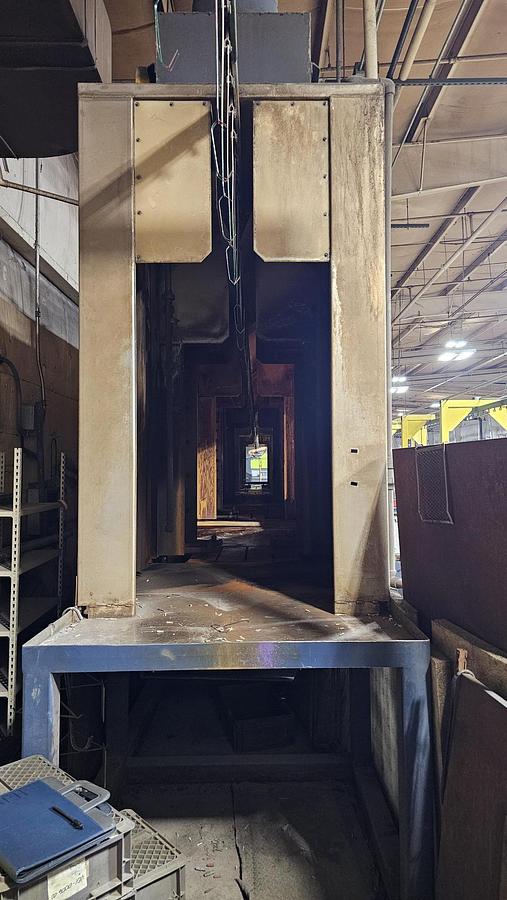

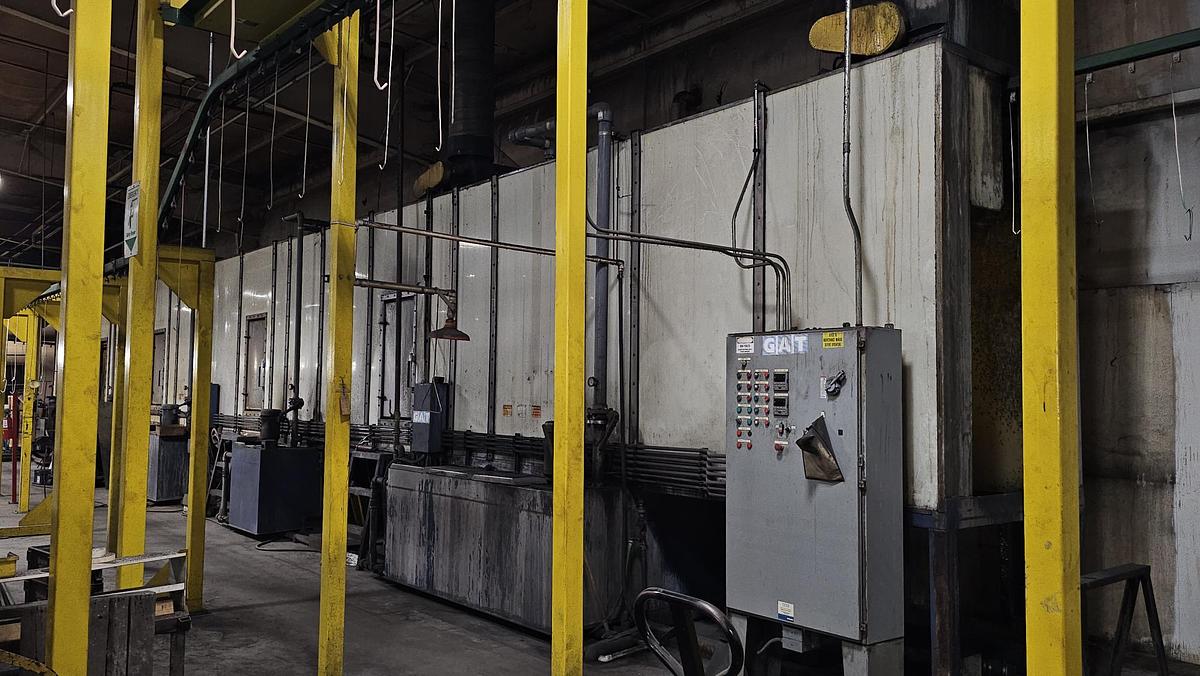

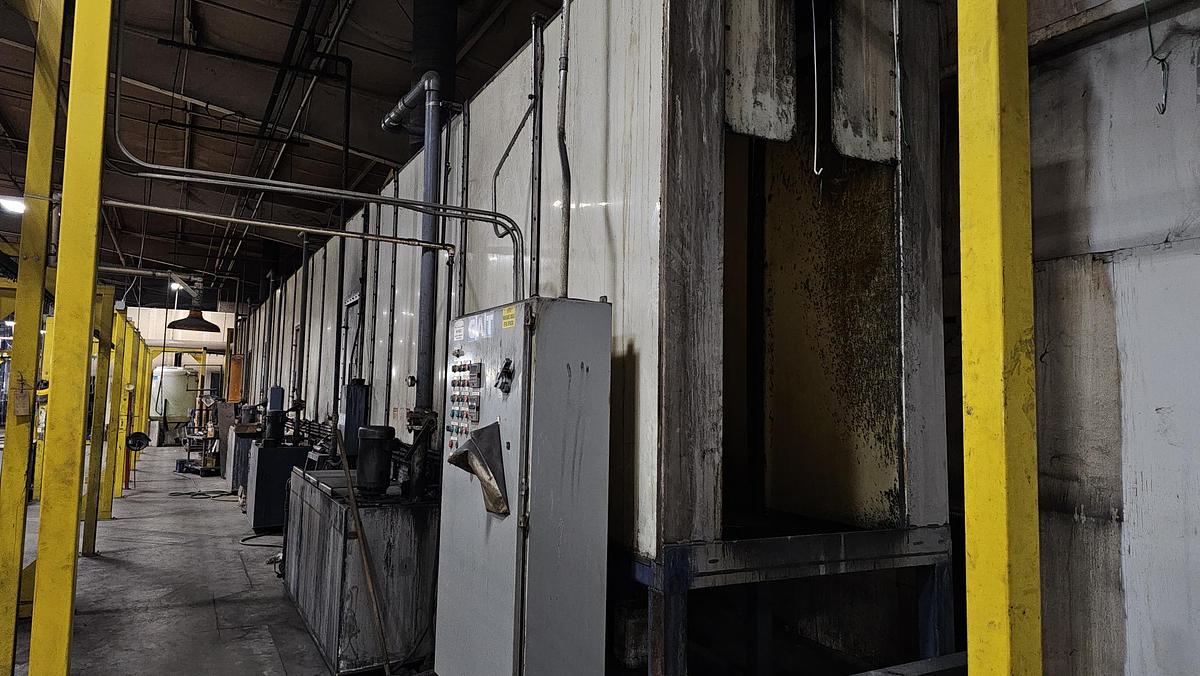

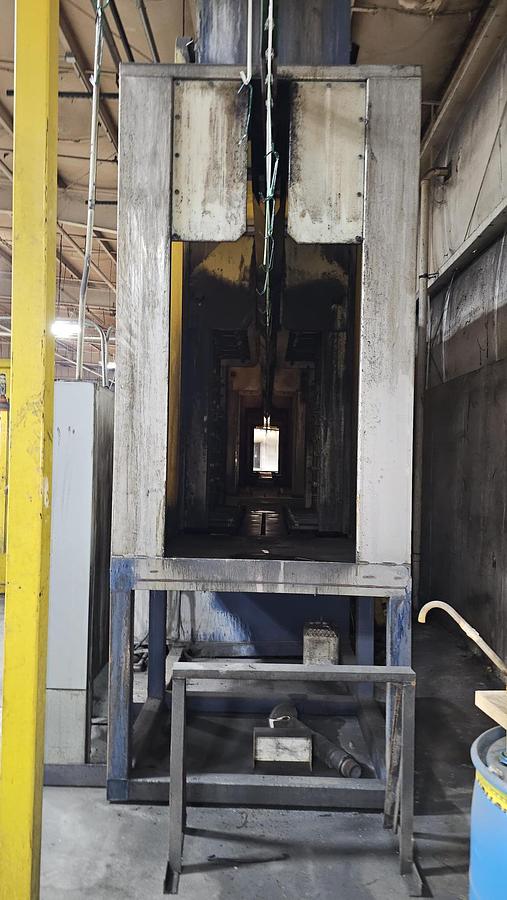

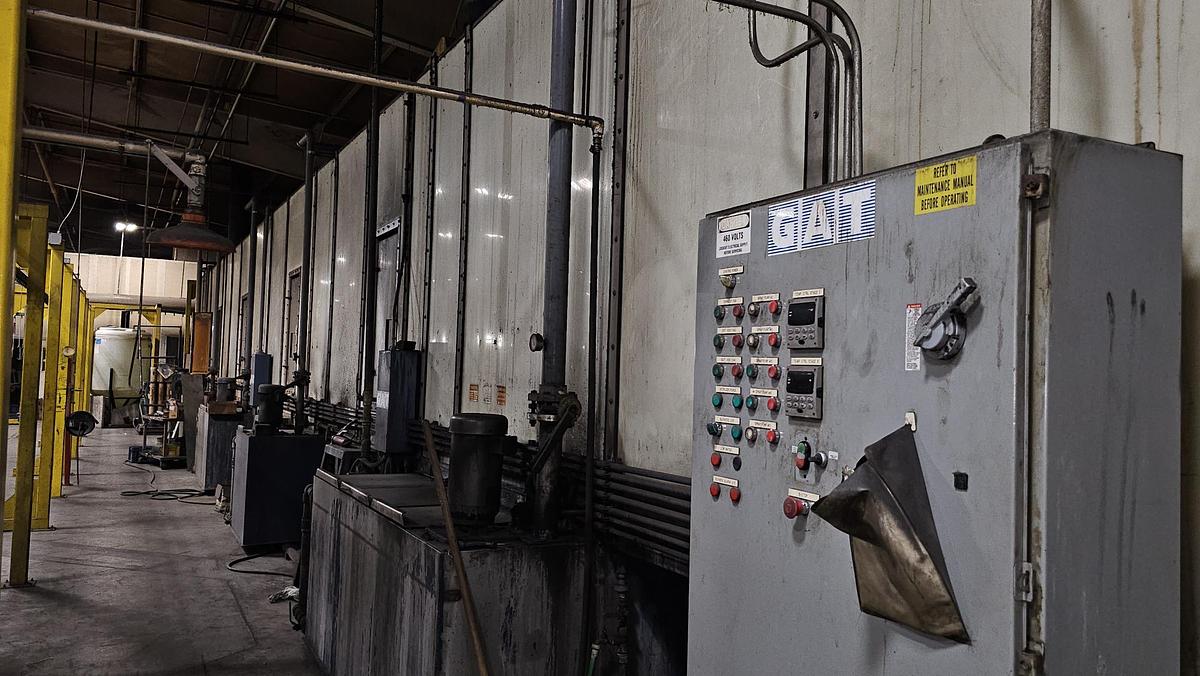

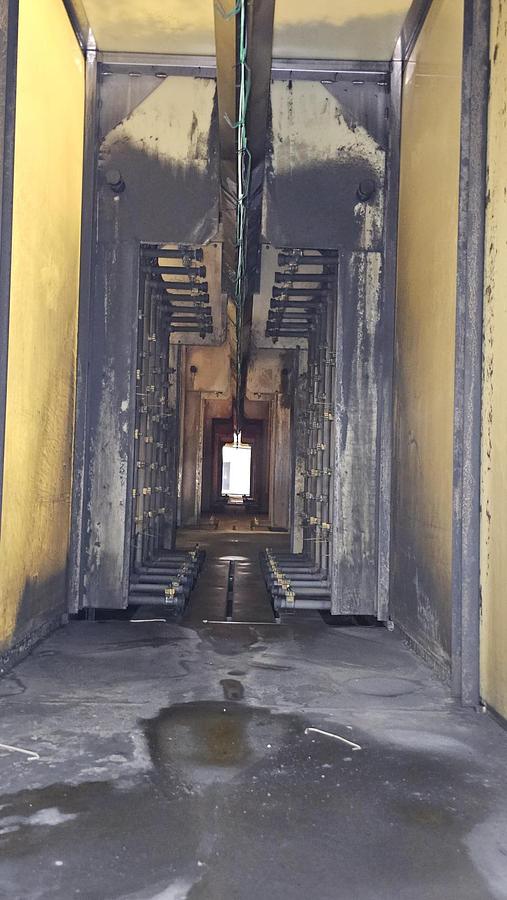

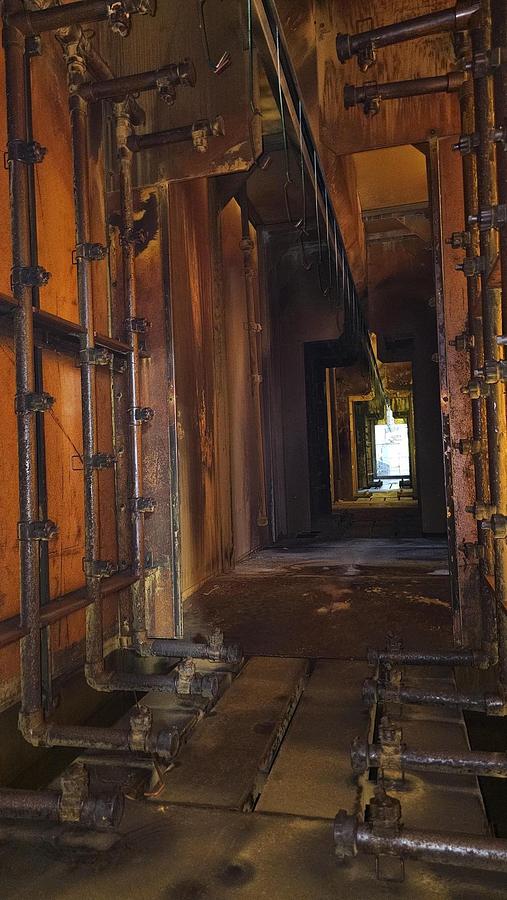

5 STAGE STAINLESS WASHER:

• Stage 1 Alkaline Clean - 848 gal. 7 ga. 301 Stainless tank - 96 seconds @ 160 degree max - Auto back-flow from Stage 2
• Stage 2 Rinse - 387 gal 7 ga. 301 Stainless tank - 36 seconds @ ambient

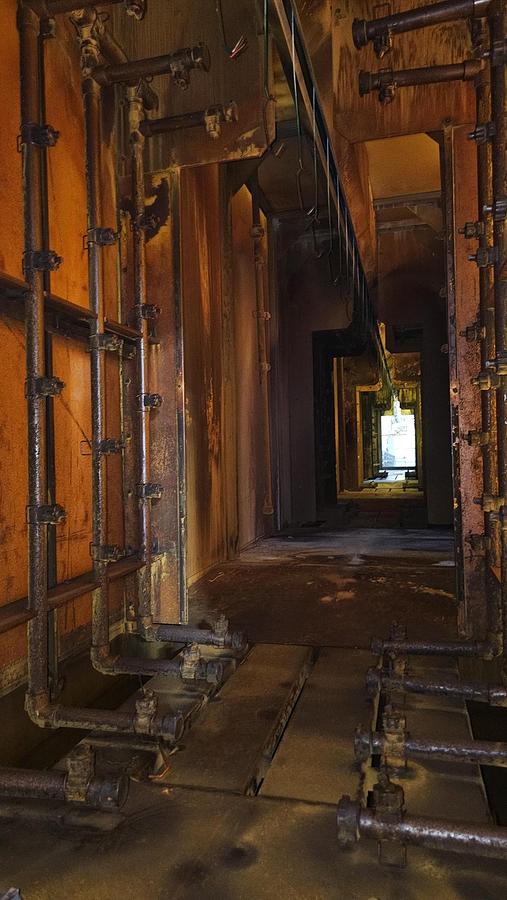

• Wetting Risers & Nozzles in Drainback for additional rinse before Zirconium / Silan
• Stage 3 Zirconium / Silan - 528 gal 7 ga. 304 Stainless tank- 60 seconds @ 160 degree max - Auto back-flow from Stage 4
• Wetting Risers & Nozzles in Drainback to additional rinse after Zirconium / Silan
• Stage 4 Rinse - 387 gal 7 ga. 301 Stainless tank - 36 seconds @ ambient
• Stage 5 Sealer - 387 gal 7 ga. 301 Stainless tank - 36 seconds @ ambient - Automatic Fresh Water Makeup
• RO halo risers at the end of washer (RO system is not available with the system)

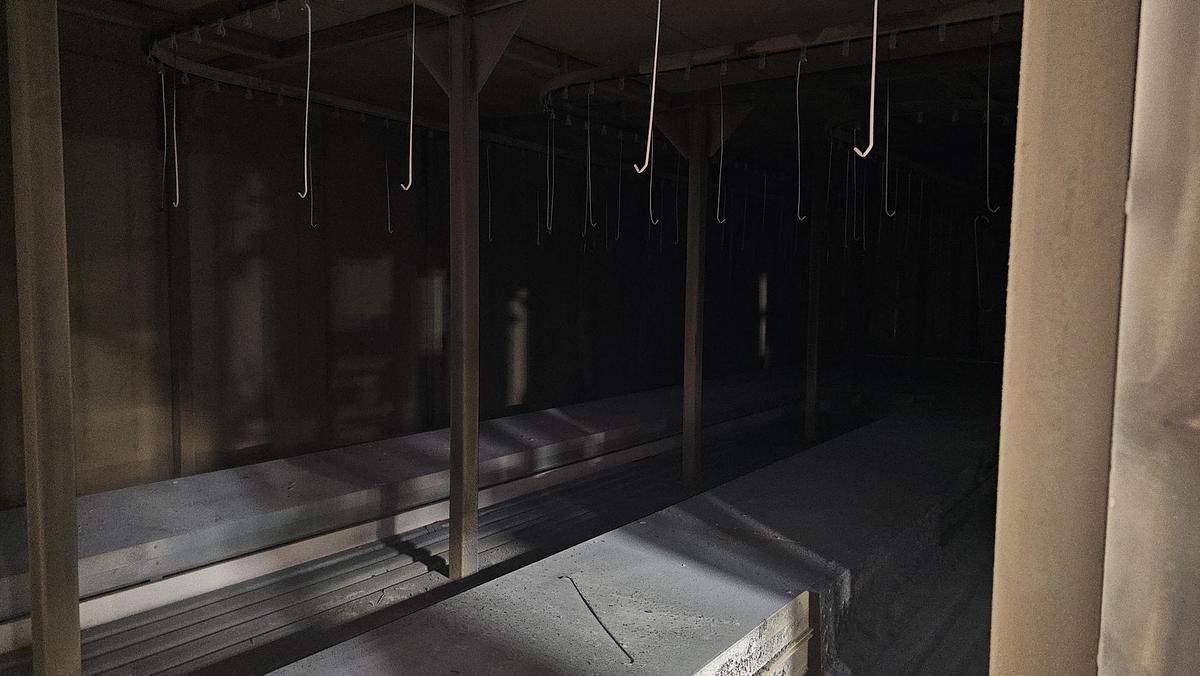

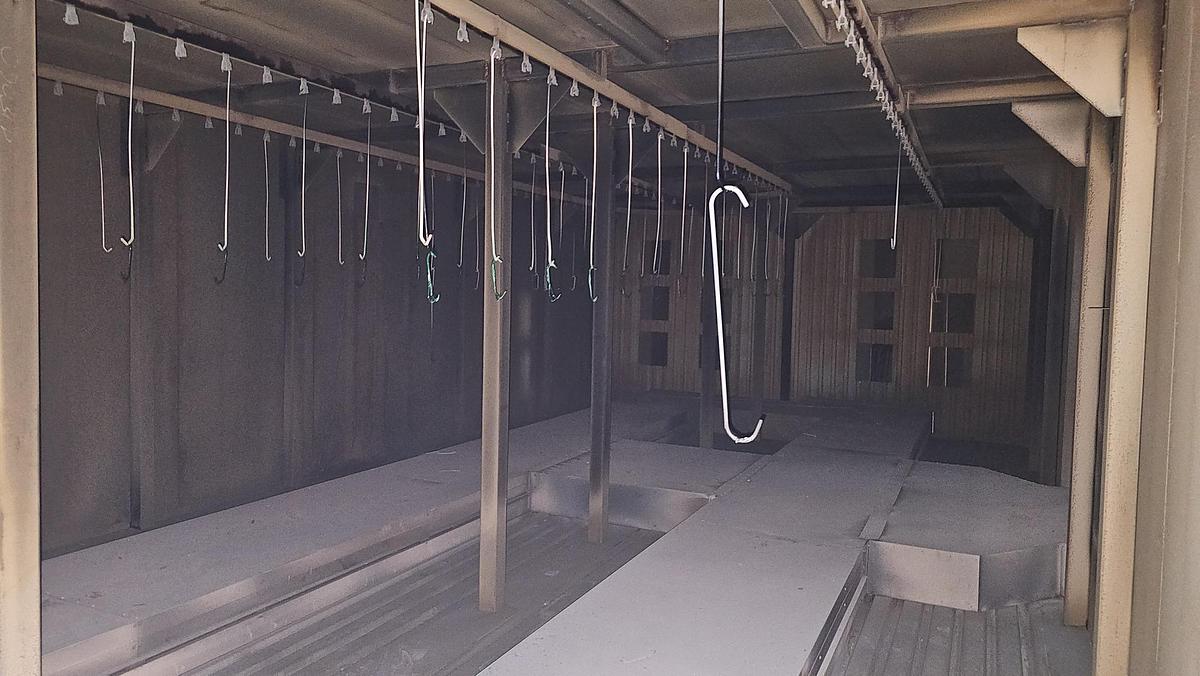

CURE OVEN: 6" wall panels - 4 pass w/ 30 minute dwell time @ 5fpm - designed to process 7500 lb/hr - designed for an 8' long part

4'w X 8'h Batch Door for off-production parts and samples

DRYOFF OVEN: 6" wall panels - 2 pass w/ 7 minute dwell time @ 5fpm - designed to process 7500 lb/hr - designed for an 8' long part

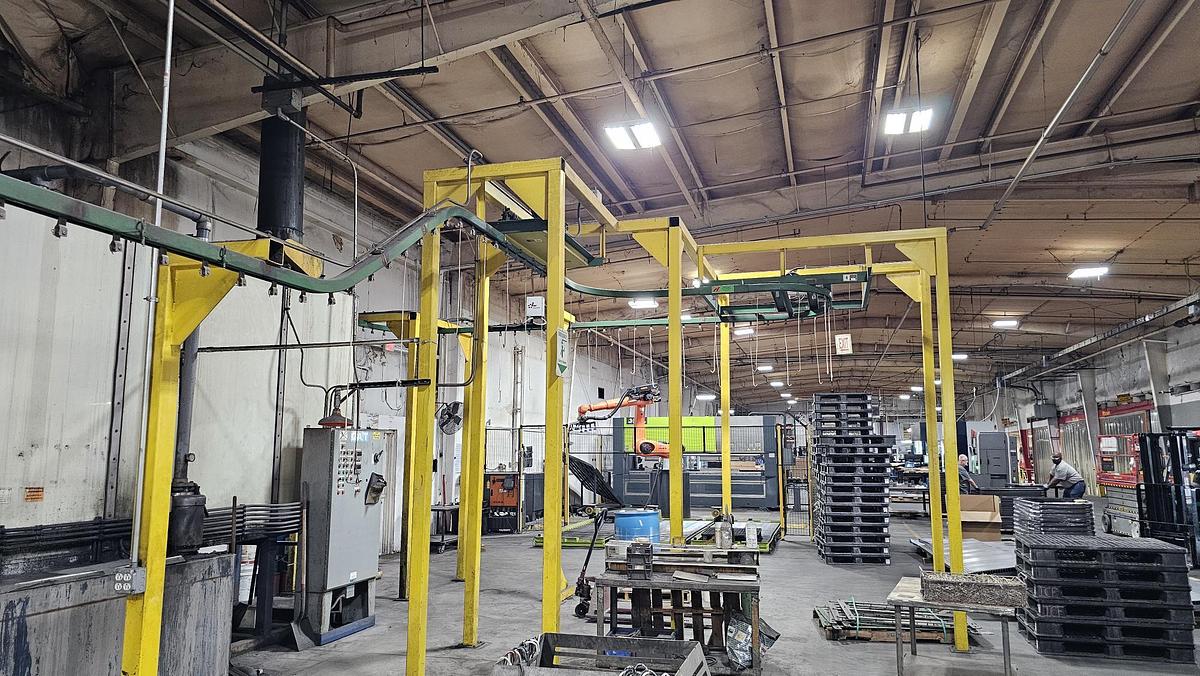

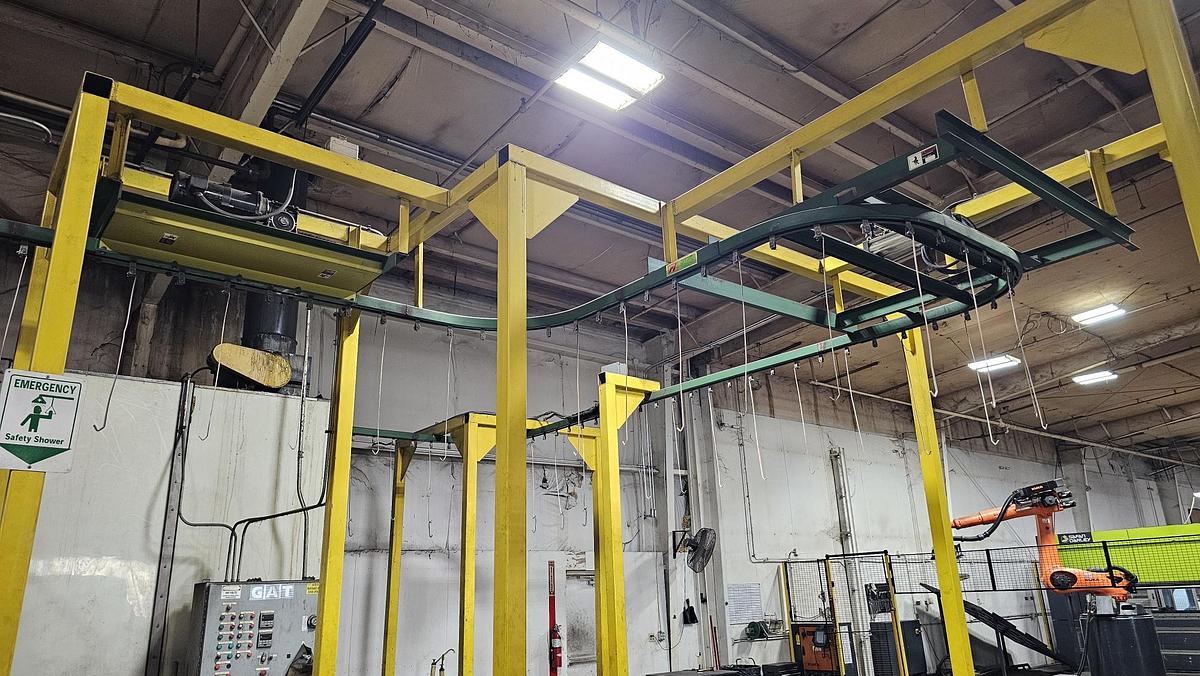

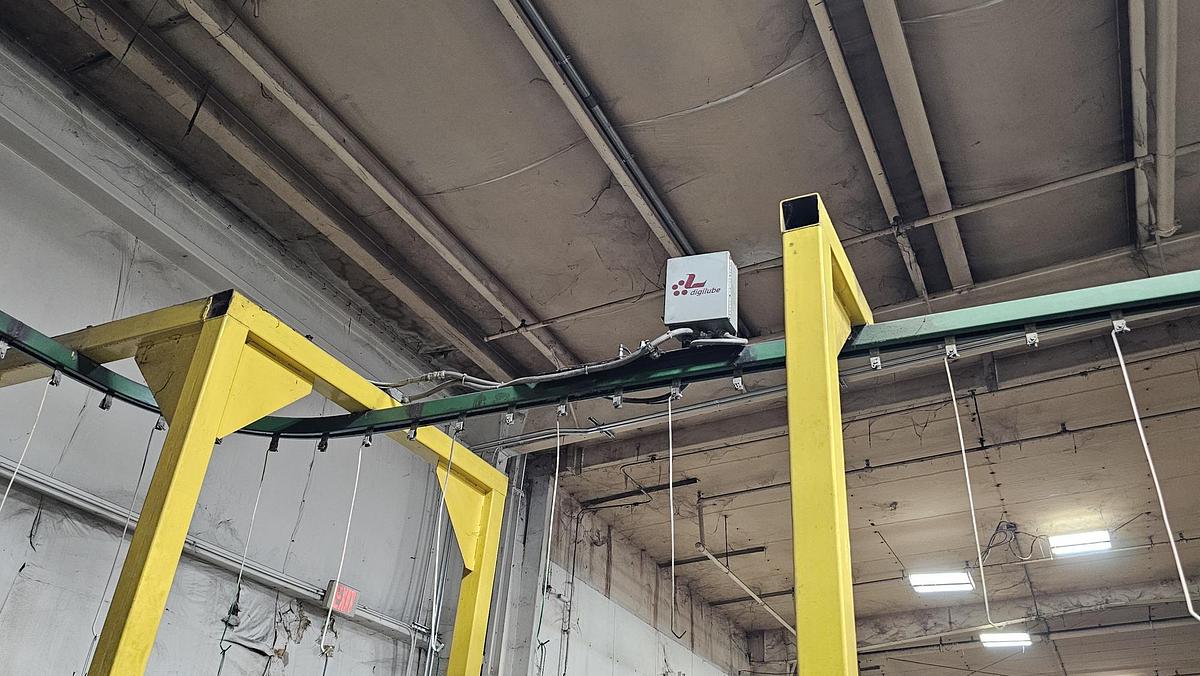

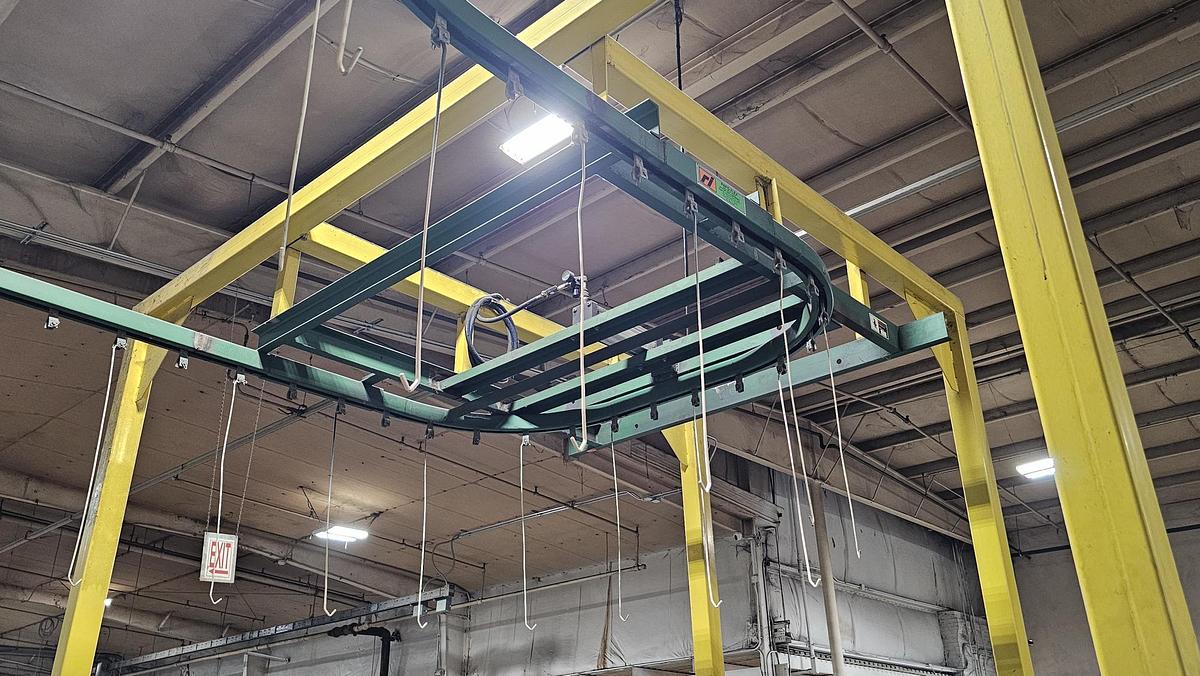

CONVEYOR SYSTEM: 570' of Rapidflex 3" enclosed conveyor - floor supported - max load of 300 lbs on 12" centers @ 5fpm (adjustable from 3 to 9 fpm) - Air Operated Takeup - Digilube Automatic Lubricator
