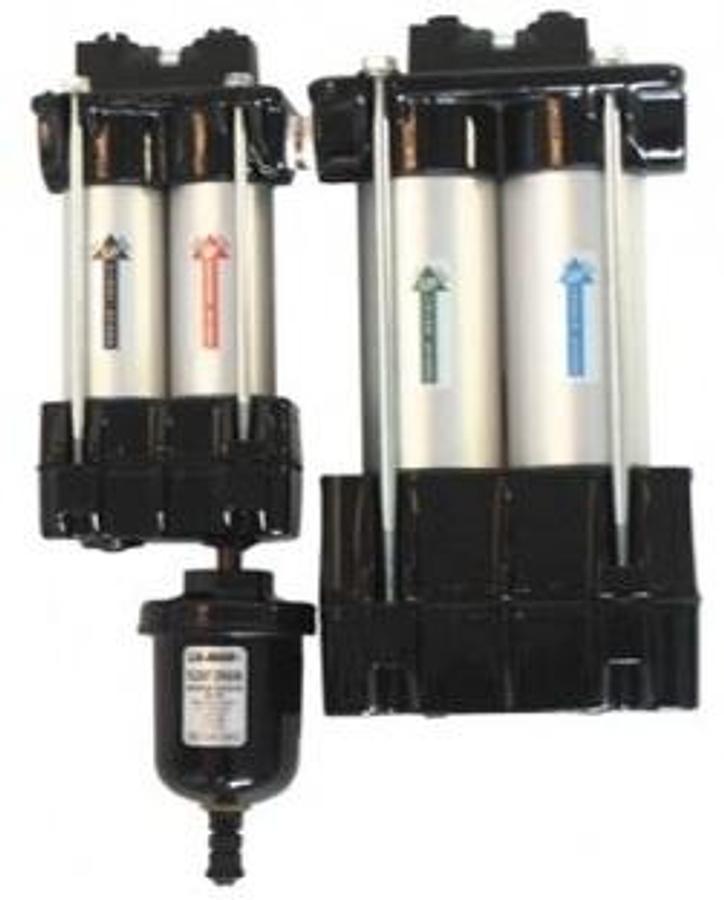

La-Man SAM-050 SuperStar .01 Micron Air Drying System

The SAM-050 .01 micron Air Filter is designed to remove oil and other particles from the compressed air source.

There are no electrical requirements or components & it is not flow sensitive, the patented filter provides the same capabilities at any flow rate (up to it's rated capacity). There are 3 models available (50 cfm, 75 cfm & 100 cfm).

All 3 units come standard with a differential pressure gauge and the patented Automatic Float Drain for constant reliability.

The 1st & 2nd stages extract & remove 99.9% of liquids & particles down to 5 microns.

The 3rd & 4th stages remove any remaining particles larger than .01 micron . Oily Hydrocarbon Vapors are removed via the unique charcoal absorption element.

Standard features include:

• Automatic Float Drain
• Mounting Brackets
• Permanent Durable Housing
• Annual Service Kit is available

The Optional SAM-050SK is a Service Kit that consists of 1 (one) each of the following:

• 1st, 2nd, 3rd & 4th Stage Replacement Elements
• Cap Gaskets
• Base Gasket
• Base Core (Honeycomb)
